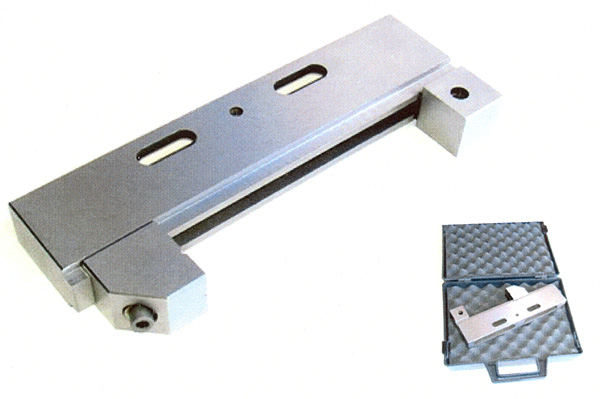

EDM Vice

  • Stainless Steel Construction
  • Hardness HRC 56-60
  • Precision Ground & Hardening Throughout
  • Parallelism and Squareness within 0.003mm/ 0.0002"

    MODEL

    SWV-2000 (2")

    SWV-4000 (4")

    SWV-6000 (6")

    SWV-8000 (8")

    BODY LENGTH

    4.7"

    6.67"

    8.75"

    11.8"

    BODY WIDTH

    3.35"

    3.35"

    4.15"

    4.34"

    BODY THICKNESS

    1.1"

    1.17"

    1.25"

    1.44"

    JAW OPENING

    2"

    4"

    6"

    8.25"

    JAW DEPTH

    0.97"

    0.97"

    1.4"

    1.59"

    CLAMPING FORCE

    1500 lbs max.

    1500 Ibs max.

    1500 lbs max.

    2800 lbs max.

    WEIGHT

    4 lbs

    6 lbs

    8 lbs

    12 lbs
